Poclaın Endüstriyel Yön Kontrol Valfleri

Poclaın Endüstriyel Yön Kontrol Valfleri

Cetop standartlarında (NG6 NG10 NG16) tipleri bulunur.
Yön kontrol merkez çeşitlilikleri mevcuttur.

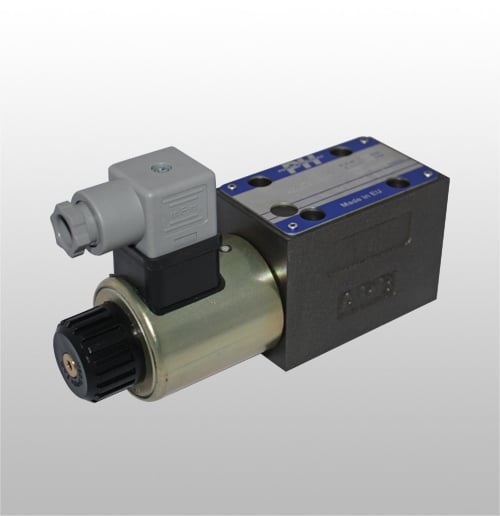

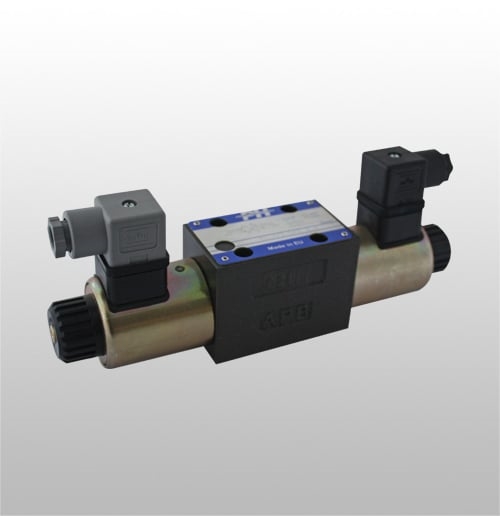

(CETOP 3) NG 6 YÖN KONTROL VALFLERİ
Tipi	Norm	Konum	Voltaj	Max. Debi
CETOP 3	NG 6	Spool Tipi	AC-DC	(lt/dak.)
KV4/2-5KO-6-51A-230AC	1/4"	NG-6 4/2 TB KG	230	60
KV4/2-5KO-6-51A-12DC	1/4"	NG-6 4/2 TB KG	12	60
KV4/2-5KO-6-51A	1/4"	NG-6 4/2 TB KG	24	60
KV3/2-5KO-6-41A	1/4"	NG-6 3/2 TB KG	24	60
KV4/2-5KO-6-1A-230AC	1/4"	NG-6 4/2 TB KM	230	60
KV4/2-5KO-6-1A-12DC	1/4"	NG-6 4/2 TB KM	12	60
KV4/2-5KO-6-1A	1/4"	NG-6 4/2 TB KM	24	60
KV4/2-5KO-6-3A-230AC	1/4"	NG-6 4/2 TB HM	230	60
KV4/2-5KO-6-3A-12DC	1/4"	NG-6 4/2 TB HM	12	60
KV4/2-5KO-6-3A	1/4"	NG-6 4/2 TB HM	24	60
KV4/3-5KO-6-1-230AC	1/4"	NG-6 4/3 KM	230	60
KV4/3-5KO-6-1-12DC	1/4"	NG-6 4/3 KM	12	60
KV4/3-5KO-6-1	1/4"	NG-6 4/3 KM	24	60
KV4/3-5KO-6-3-230AC	1/4"	NG-6 4/3 HM	230	60
KV4/3-5KO-6-3-12DC	1/4"	NG-6 4/3 HM	12	60
KV4/3-5KO-6-3	1/4"	NG-6 4/3 HM	24	60
KV4/3-5KO-6-6-230AC	1/4"	NG-6 4/3 ABT	230	60
KV4/3-5KO-6-6-12DC	1/4"	NG-6 4/3 ABT	12	60
KV4/3-5KO-6-6	1/4"	NG-6 4/3 ABT	24	60
KV4/3-5KO-6-2-230AC	1/4"	NG-6 4/3 AM	230	60
KV4/3-5KO-6-2-12DC	1/4"	NG-6 4/3 AM	12	60
KV4/3-5KO-6-2	1/4"	NG-6 4/3 AM	24	60
KV4/2-5KO-6-81-230AC	1/4"	NG-6 4/2 ÇB DETANTLI	230	60
KV4/2-5KO-6-81-12DC-ZN	1/4"	NG-6 4/2 ÇB DETANTLI	12	60
KV4/2-5KO-6-81	1/4"	NG-6 4/2 ÇB DETANTLI	24	60

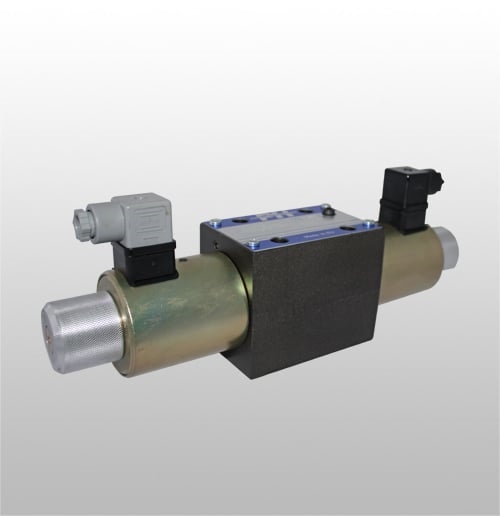

(CETOP 5) NG 10 YÖN KONTROL VALFLERİ
Tipi	Norm	Konum	Voltaj	Max. Debi
CETOP 5	NG 10	Spool Tipi	AC-DC	(lt/dak.)
KV4/2-5KO-10-51A-230AC	1/2"	NG 10 4/2 TB KG	230	100
KV4/2-5KO-10-51A-12DC	1/2"	NG 10 4/2 TB KG	12	100
KV4/2-5KO-10-51A	1/2"	NG 10 4/2 TB KG	24	100
KV4/2-5KO-10-1A-230AC	1/2"	NG 10 4/2 TB KM	230	100
KV4/2-5KO-10-1A-12DC	1/2"	NG 10 4/2 TB KM	12	100
KV4/2-5KO-10-1A	1/2"	NG 10 4/2 TB KM	24	100
KV4/2-5KO-10-3A-230AC	1/2"	NG 10 4/2 TB HM	230	100
KV4/2-5KO-10-3A-12DC	1/2"	NG 10 4/2 TB HM	12	100
KV4/2-5KO-10-3A	1/2"	NG 10 4/2 TB HM	24	100
KV4/3-5KO-10-1-230AC	1/2"	NG 10 4/3 KM	230	100
KV4/3-5KO-10-1-12DC	1/2"	NG 10 4/3 KM	12	100
KV4/3-5KO-10-1	1/2"	NG 10 4/3 KM	24	100
KV4/3-5KO-10-3-230AC	1/2"	NG 10 4/3 HM	230	100
KV4/3-5KO-10-3-12DC	1/2"	NG 10 4/3 HM	12	100
KV4/3-5KO-10-3	1/2"	NG 10 4/3 HM	24	100
KV4/3-5KO-10-6-230AC	1/2"	NG 10 4/3 ABT	230	100
KV4/3-5KO-10-6-12DC	1/2"	NG 10 4/3 ABT	12	100
KV4/3-5KO-10-6	1/2"	NG 10 4/3 ABT	24	100
KV4/3-5KO-10-2-230AC	1/2"	NG 10 4/3 AM	230	100
KV4/3-5KO-10-2-12DC	1/2"	NG 10 4/3 AM	12	100
KV4/3-5KO-10-2	1/2"	NG 10 4/3 AM	24	100

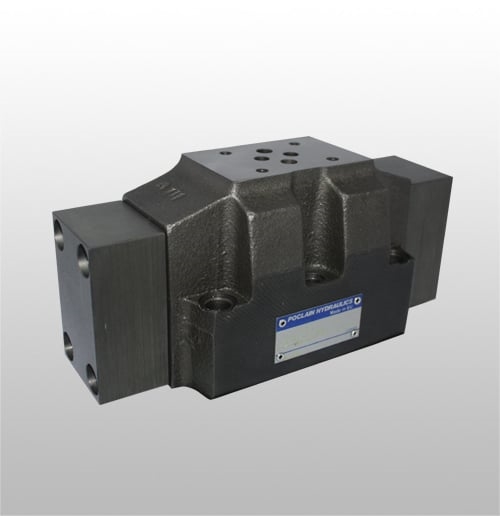

(CETOP 7) NG 16 YÖN DENETİM VALFİ (GÖVDE)
Tipi	Kontrol	Max. Basınç	Max. Debi (lt/dak)
CETOP 7	Spool Tipi	Bar	(320 Bar'da)	(210 Bar'da)
KV-4/2-16-51A-N	TB GÖVDE	320	300	250
KV-4/3-16-1-N	KM GÖVDE	320	300	250
KV-4/3-16-6-N	ABT GÖVDE	320	300	250
KV-4/3-16-2-N-V	AM ÇEKLİ GÖVDE	320	300	250
KV-4/3-16-3-N-V	HM ÇEKLİ GÖVDE	320	300	250
