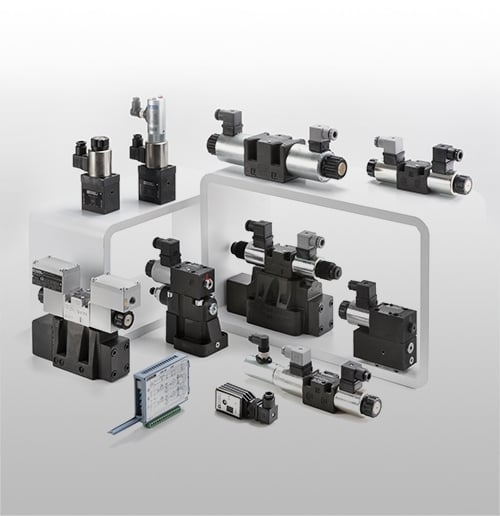

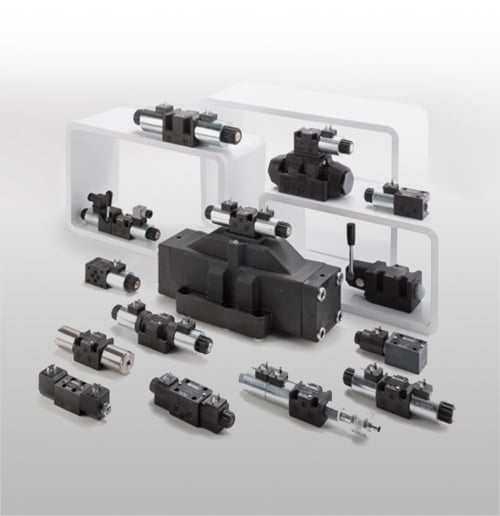

Duplomatic Endüstriyel Yön Kontrol Valfleri

Duplomatic Endüstriyel Yön Kontrol Valfleri

Cetop Standartlarında (NG6 NG10 NG16 NG25 NG32) tipleri mevcuttur.
Yön kontrol merkez çeşitlilikleri mevcuttur.
Farklı kontrol tipleri (Elektrik, Hidrolik, Pnömatik, Kol) mevcuttur.

( CETOP 3 ) NG 6 BOBİNLİ YÖN KONTROL VALFLERİ - 350 BAR
Tipi Norm Konum Voltaj Maks. Debi
CETOP 3 NG 6 Spool Tipi AC-DC (lt/dak.)
DS3-TA/11N-A230K1 1/4" NG-6 4/2 TB KG 230 100
DS3-TA/11N-A110K1 1/4" NG-6 4/2 TB KG 110 100
DS3-TA/11N-D12K1 1/4" NG-6 4/2 TB KG 12 100
DS3-TA/11N-D24K1 1/4" NG-6 4/2 TB KG 24 100
DS3-TA02/11N-A230K1 1/4" NG-6 4/2 TB AG 230 100
DS3-TA02/11N-A110K1 1/4" NG-6 4/2 TB AG 110 100
DS3-TA02/11N-D12K1 1/4" NG-6 4/2 TB AG 12 100
DS3-TA02/11N-D24K1 1/4" NG-6 4/2 TB AG 24 100
DS3-SA2/10N-A230K1 1/4" NG-6 4/2 HA 230 100
DS3-SA2/10N-A110K1 1/4" NG-6 4/2 HA 110 100
DS3-SA2/10N-D12K1 1/4" NG-6 4/2 HA 12 100
DS3-SA2/10N-D24K1 1/4" NG-6 4/2 HA 24 100
DS3-SA1/10N-A230K1 1/4" NG-6 4/2 TB KM   P>A'YA AÇIK 230 100
DS3-SA1/10N-A110K1 1/4" NG-6 4/2 TB KM   P>A'YA AÇIK 110 100
DS3-SA1/10N-D12K1 1/4" NG-6 4/2 TB KM   P>A'YA AÇIK 12 100
DS3-SA1/10N-D24K1 1/4" NG-6 4/2 TB KM   P>A'YA AÇIK 24 100
DS3-SB1/10N-A230K1 1/4" NG-6 4/2 TB KM   P>B'YA AÇIK 230 100
DS3-SB1/10N-A110K1 1/4" NG-6 4/2 TB KM   P>B'YA AÇIK 110 100
DS3-SB1/10N-D12K1 1/4" NG-6 4/2 TB KM   P>B'YA AÇIK 12 100
DS3-SB1/10N-D24K1 1/4" NG-6 4/2 TB KM   P>B'YA AÇIK 24 100
DS3-TB23/11N-A230K1 1/4" NG-6 3/2 TB 230 100
DS3-TB23/11N-A110K1 1/4" NG-6 3/2 TB 110 100
DS3-TB23/11N-D12K1 1/4" NG-6 3/2 TB 12 100
DS3-TB23/11N-D24K1 1/4" NG-6 3/2 TB 24 100
DS3-S1/10N-A230K1 1/4" NG-6 4/3 KM 230 100
DS3-S1/10N-A110K1 1/4" NG-6 4/3 KM 110 100
DS3-S1/10N-D12K1 1/4" NG-6 4/3 KM 12 100
DS3-S1/10N-D24K1 1/4" NG-6 4/3 KM 24 100
DS3-S2/10N-A230K1 1/4" NG-6 4/3 HM 230 100
DS3-S2/10N-A110K1 1/4" NG-6 4/3 HM 110 100
DS3-S2/10N-D12K1 1/4" NG-6 4/3 HM 12 100
DS3-S2/10N-D24K1 1/4" NG-6 4/3 HM 24 100
DS3-S3/10N-A230K1 1/4" NG-6 4/3 ABT 230 100
DS3-S3/10N-A110K1 1/4" NG-6 4/3 ABT 110 100
DS3-S3/10N-D12K1 1/4" NG-6 4/3 ABT 12 100
DS3-S3/10N-D24K1 1/4" NG-6 4/3 ABT 24 100
DS3-S4/10N-A230K1 1/4" NG-6 4/3 AM 230 50
DS3-S4/10N-A110K1 1/4" NG-6 4/3 AM 110 50
DS3-S4/10N-D12K1 1/4" NG-6 4/3 AM 12 50
DS3-S4/10N-D24K1 1/4" NG-6 4/3 AM 24 50
DS3-S10/10N-A230K1 1/4" NG-6 4/3  REGENERATİVE 230 100
DS3-S10/10N-A110K1 1/4" NG-6 4/3  REGENERATİVE 110 100
DS3-S10/10N-D12K1 1/4" NG-6 4/3  REGENERATİVE 12 100
DS3-S10/10N-D24K1 1/4" NG-6 4/3  REGENERATİVE 24 100
DS3-RK/10N-A230K1 1/4" NG-6 4/2 ÇB KG DETANTLI 230 100
DS3-RK/10N-A110K1 1/4" NG-6 4/2 ÇB KG DETANTLI 110 100
DS3-RK/10N-D12K1 1/4" NG-6 4/2 ÇB KG DETANTLI 12 100
DS3-RK/10N-D24K1 1/4" NG-6 4/2 ÇB KG DETANTLI 24 100
DS3-RK02/10N-A230K1 1/4" NG-6 4/2 ÇB AG DETANTLI 230 100
DS3-RK02/10N-A110K1 1/4" NG-6 4/2 ÇB AG DETANTLI 110 100
DS3-RK02/10N-D12K1 1/4" NG-6 4/2 ÇB AG DETANTLI 12 100
DS3-RK02/10N-D24K1 1/4" NG-6 4/2 ÇB AG DETANTLI 24 100
DS3-S22/11N-D…K1 1/4" NG-6 4/3 ABT REJENERATİF(D.Geçiş) 12-24-110-230 100
DS3-S23/11N-D…K1 1/4" NG-6 4/3 ABT REJENERATİF(Ç.Geçiş) 12-24-110-230 100

*Soket fiyata dahildir.



YEDEK SOLENOİD VALF BOBİNLERİ
Tipi Cinsi Voltaj
C22S3-D12K1/11 NG6 12 VDC
C22S3-D24K1/11 NG6 24 VDC
C206S3-A110K1/10 NG6 110 VAC
228 VAC 229 VAC 230 VAC



(CETOP 5) NG 10 BOBİNLİ YÖN KONTROL VALFLERİ - 320 BAR
Tipi Norm Konum Voltaj Maks. Debi
CETOP 5 NG 10 Spool Tipi AC-DC (lt/dak.)
DS5-TA/12N-A230K1 1/2" NG-10 4/2 TB KG 230 150
DS5-TA/12N-A110K1 1/2" NG-10 4/2 TB KG 110 150
DS5-TA/12N-D12K1 1/2" NG-10 4/2 TB KG 12 150
DS5-TA/12N-D24K1 1/2" NG-10 4/2 TB KG 24 150
DS5-TA02/12N-A230K1 1/2" NG-10 4/2 TB KG 230 150
DS5-TA02/12N-A110K1 1/2" NG-10 4/2 TB KG 110 150
DS5-TA02/12N-D12K1 1/2" NG-10 4/2 TB KG 12 150
DS5-TA02/12N-D24K1 1/2" NG-10 4/2 TB KG 24 150
DS5-SA2/12N-A230K1 1/2" NG-10 4/2 HA 230 150
DS5-SA2/12N-A110K1 1/2" NG-10 4/2 HA 110 150
DS5-SA2/12N-D12K1 1/2" NG-10 4/2 HA 12 150
DS5-SA2/12N-D24K1 1/2" NG-10 4/2 HA 24 150
DS5-TA23/12N-A230K1 1/2" NG-10 3/2 TB AG 230 150
DS5-TA23/12N-A110K1 1/2" NG-10 3/2 TB AG 110 150
DS5-TA23/12N-D12K1 1/2" NG-10 3/2 TB AG 12 150
DS5-TA23/12N-D24K1 1/2" NG-10 3/2 TB AG 24 150
DS5-S1/12N-A230K1 1/2" NG-10 4/3 KM 230 150
DS5-S1/12N-A110K1 1/2" NG-10 4/3 KM 110 150
DS5-S1/12N-D12K1 1/2" NG-10 4/3 KM 12 150
DS5-S1/12N-D24K1 1/2" NG-10 4/3 KM 24 150
DS5-S2/12N-A230K1 1/2" NG-10 4/3 HM 230 150
DS5-S2/12N-A110K1 1/2" NG-10 4/3 HM 110 150
DS5-S2/12N-D12K1 1/2" NG-10 4/3 HM 12 150
DS5-S2/12N-D24K1 1/2" NG-10 4/3 HM 24 150
DS5-S3/12N-A230K1 1/2" NG-10 4/3 ABT 230 150
DS5-S3/12N-A110K1 1/2" NG-10 4/3 ABT 110 150
DS5-S3/12N-D12K1 1/2" NG-10 4/3 ABT 12 150
DS5-S3/12N-D24K1 1/2" NG-10 4/3 ABT 24 150
DS5-S4/12N-A230K1 1/2" NG-10 4/3 AM 230 150
DS5-S4/12N-A110K1 1/2" NG-10 4/3 AM 110 150
DS5-S4/12N-D12K1 1/2" NG-10 4/3 AM 12 150
DS5-S4/12N-D24K1 1/2" NG-10 4/3 AM 24 150
DS5-S10/12N-A230K1 1/2" NG-10 4/3  REGENERATİVE 230 150
DS5-S10/12N-A110K1 1/2" NG-10 4/3  REGENERATİVE 110 150
DS5-S10/12N-D12K1 1/2" NG-10 4/3  REGENERATİVE 12 150
DS5-S10/12N-D24K1 1/2" NG-10 4/3  REGENERATİVE 24 150
DS5-RK/12N-A230K1 1/2" NG-10 4/2 ÇB KG DETANTLI 230 150
DS5-RK/12N-A110K1 1/2" NG-10 4/2 ÇB KG DETANTLI 110 150
DS5-RK/12N-D12K1 1/2" NG-10 4/2 ÇB KG DETANTLI 12 150
DS5-RK/12N-D24K1 1/2" NG-10 4/2 ÇB KG DETANTLI 24 150
DS5-RK02/12N-A230K1 1/2" NG-10 4/2 ÇB AG DETANTLI 230 150
DS5-RK02/12N-A110K1 1/2" NG-10 4/2 ÇB AG DETANTLI 110 150
DS5-RK02/12N-D12K1 1/2" NG-10 4/2 ÇB AG DETANTLI 12 150
DS5-RK02/12N-D24K1 1/2" NG-10 4/2 ÇB AG DETANTLI 24 150

*Soket fiyata dahildir.



YEDEK SOLENOİD VALF BOBİNLERİ
Tipi Cinsi Voltaj
C31-D12K1/20 NG10 12 VDC
C31-D24K1/20 NG10 24 VDC
C254-A110K1/11 NG10 110 VAC
C254-A230K1/11 NG10 230 VAC



(CETOP 3) NG 6 ÖZEL YÖN KONTROL VALFLERİ
Tipi Norm    Konum         Maks. Basınç Maks. Debi
CETOP 3 NG 6 Kontrol Tipi (bar) (lt/dak.)
DS3M-SA1/10N-D24K1 1/4" NG-6 4/2 EA CE Versiyonlu  350 80
DS3M-SA1/10N-D24K1 1/4" NG-6 4/2 TB EA CE Versiyonlu  350 80
DS3M-TA/10N-D24K1 1/4" NG-6 4/2 TB CE Versiyonlu  350 80
DS3M-S1/10N-D24K1 1/4" NG-6 4/2 KM CE Versiyonlu 350 80
*Soket fiyata dahildir.
DSH3-TA02/10N 1/4" NG-6 4/2 TB Kollu/Yay mrk (HM Geçiş) 350 100
DSH3-TAK02/10N 1/4" NG-6 4/2 TB Kollu/Detantlı (HM Geçiş) 350 100
DSH3-TA/10N 1/4" NG-6 4/2 TB Kollu/Yay mrk (KM Geçiş) 350 100
DSH3-TAK/10N 1/4" NG-6 4/2 TB Kollu/Detantlı (KM Geçiş) 350 100
DSH3-S1/10N 1/4" NG-6 4/3 KM Kollu/Yay mrk 350 100
DSH3-SK1/10N 1/4" NG-6 4/3 KM Kollu/Detantlı 350 100
DSH3-S2/10N 1/4" NG-6 4/3 HM Kollu/Yay mrk 350 100
DSH3-SK2/10N 1/4" NG-6 4/3 HM Kollu/Detantlı 350 100
DSH3-S3/10N 1/4" NG-6 4/3 ABT Kollu/Yay mrk 350 100
DSH3-SK3/10N 1/4" NG-6 4/3 ABT Kollu/Detantlı 350 100
DSH3-S4/10N 1/4" NG-6 4/3 AM Kollu/Yay mrk 350 100
DSH3-SK4/10N 1/4" NG-6 4/3 AM Kollu/Detantlı 350 100
DSA3-S3/10N 1/4" NG-6 4/3 ABT Pnömatik Uyarılı 350 100
DSA3-S4/10N 1/4" NG-6 4/3 AM Pnömatik Uyarılı 350 100
DSC3-S3/10N 1/4" NG-6 4/3 ABT Hidrolik Uyarılı 350 100
DSR3H-TA/10N 1/4" NG-6 4/2 TB Makaralı 350 100
DSB3-RTA/10N 1/4" NG-6 4/2 Otomatik Çalıştırma Valfi 350 50
DS3KD2-S1/21 D24 1/4" NG-6 4/3 KM EXPROOF 350 60
DS3KD2-S2/21 D24 1/4" NG-6 4/3 HM EXPROOF 350 60
DS3KD2-S3/21 D24 1/4" NG-6 4/3 ABT EXPROOF 350 60
DS3KD2-S4/21 D24 1/4" NG-6 4/3 AM EXPROOF 350 60
DS3KD2-TA/21 D24 1/4" NG-6 3/2 TB EXPROOF 350 60
DS3KD2-TC/21 D24 1/4" NG-6 3/2 TB EXPROOF 350 60
DS3KD2-RK/21 D24 1/4" NG-6 3/2 ÇB EXPROOF 350 60



( CETOP 3 ) NG 6 BOBİNLİ YÖN KONTROL VALFLERİ BASMA BUTONLARI
Tipi KOD Bağlantı Bobin
CETOP 03 Normu Tipi
CPK-DS3/10 D.C.(Mekanik Kilitli) 3401150004 NG6 DC
CP-DS3/10 D.C. 3401150005 NG6 DC
CM-DS3/11 D.C. 0119334 - 3401150006 NG6 AC-DC



(CETOP 5) NG 10 ÖZEL YÖN - KONTROL VALFLERİ
Tipi Norm    Konum         Maks. Basınç Maks. Debi
CETOP 5 NG 10 Kontrol Tipi (bar) (lt/dak.)
DS5M-SA1/20N-D24K1 1/2" NG-10 4/2 EA CE Versiyonlu 350 80
DS5M-TA/20N-D24K1 1/2" NG-10 4/2 TB CE Versiyonlu  350 80
DS5M-S1/20N-D24K1 1/2" NG-10 4/2 KM CE Versiyonlu 350 80
*Soket fiyata dahildir.
DSH5-TA02/20N 1/2" NG-10 4/2 TB Kollu/Yay mrk (HM Geçiş) 350 150
DSH5-TAK02/20N 1/2" NG-10 4/2 TB Kollu/Detantlı (HM Geçiş) 350 150
DSH5-TA/20N 1/2" NG-10 4/2 TB Kollu/Yay mrk (KM Geçiş) 350 150
DSH5-TAK/20N 1/2" NG-10 4/2 TB Kollu/Detantlı (KM Geçiş) 350 150
DSH5-S1/20N 1/2" NG-10 4/3 KM Kollu/Yay mrk 350 150
DSH5-SK1/20N 1/2" NG-10 4/3 KM Kollu/Detantlı 350 150
DSH5-S2/20N 1/2" NG-10 4/3 HM Kollu/Yay mrk 350 150
DSH5-SK2/20N 1/2" NG-10 4/3 HM Kollu/Detantlı 350 150
DSH5-S3/20N 1/2" NG-10 4/3 ABT Kollu/Yay mrk 350 150
DSH5-SK3/20N 1/2" NG-10 4/3 ABT Kollu/Detantlı 350 150
DSH5-S4/20N 1/2" NG-10 4/3 AM Kollu/Yay mrk 350 150
DSH5-SK4/20N 1/2" NG-10 4/3 AM Kollu/Detantlı 350 150
DSA5-S3/20N 1/2" NG-10 4/3 ABT Pnömatik Uyarılı 350 150
DSB5-RTA/10N 1/2" NG-10 4/2 Otomatik Çalıştırma Valfi 350 50
DSP5KD2-S1 D24 1/2" NG-10 4/3 KM EXPROOF PİLOTLU 350 150
DSP5KD2-S2 D24 1/2" NG-10 4/3 HM EXPROOF PİLOTLU 350 150
DSP5KD2-S3 D24 1/2" NG-10 4/3 ABT EXPROOF PİLOTLU 350 150
DSP5KD2-S4 D24 1/2" NG-10 4/3 AM EXPROOF PİLOTLU 350 150
DSP5KD2-TA D24 1/2" NG-10 3/2 TB EXPROOF PİLOTLU 350 150
DSP5KD2-TC D24 1/2" NG-10 3/2 TB EXPROOF PİLOTLU 350 150
DSP5KD2-RK D24 1/2" NG-10 3/2 ÇB EXPROOF PİLOTLU 350 150



( CETOP 7 ) NG 16 YÖN DENETİM VALFİ (GÖVDE)

Tipi Kontrol Norm Maks. Basınç Maks. Debi
CETOP 7 Spool Tipi NG 16 (bar) (lt/dak.)
DSO7-TA/10/N/II TB KG GÖVDE NG16 320 300
DSO7-TA02/10/N/II TB AG GÖVDE NG16 320 300
DSO7-S1/10/N/II KM GÖVDE NG16 320 300
DSO7-S2/10/N/CI HM ÇEKLİ GÖVDE NG16 320 300
DSO7-S3/10/N/II ABT GÖVDE NG16 320 300
DSO7-S4/10/N/CI AM ÇEKLİ GÖVDE NG16 320 300
DSO7H-TA/10/N/II TB GÖVDE NG16 420 300
DSO7H-S1/10/N/II KM GÖVDE NG16 420 300
DSO7H-S2/10/N/CI HM ÇEKLİ GÖVDE NG16 420 300
DSO7H-S3/10/N/II ABT GÖVDE NG16 420 300
DSO7H-S4/10/N/CI AM ÇEKLİ GÖVDE NG16 420 300

Pilot valf fiyatlara dahil değildir.



( CETOP 8 ) NG 25 YÖN DENETİM VALFİ (GÖVDE)
Tipi Kontrol Norm Maks. Basınç Maks. Debi
CETOP 8 Spool Tipi NG 25 (bar) (lt/dak.)
CE5P4-TA/I/34 TB GÖVDE NG25 320 600
CE5P4-S1/I/34 KM GÖVDE NG25 320 600
CE5P4-S2/IC3/34 HM ÇEKLİ GÖVDE NG25 320 600
CE5P4-S3/I/34 ABT GÖVDE NG25 320 600
CE5P4-S4/IC3/34 AM ÇEKLİ GÖVDE NG25 320 600
CE5HP4-TA/I/34 TB GÖVDE NG25 420 600
CE5HP4-S1/I/34 KM GÖVDE NG25 420 600
CE5HP4-S2/IC3/34 HM ÇEKLİ GÖVDE NG25 420 600
CE5HP4-S3/I/34 ABT GÖVDE NG25 420 600
CE5HP4-S4/IC3/34 AM ÇEKLİ GÖVDE NG25 420 600

Pilot valf fiyatlara dahil değildir.



( CETOP 10 ) NG 32 YÖN DENETİM VALFİ (GÖVDE)
Tipi Kontrol Norm Maks. Basınç Maks. Debi
CETOP 10 Spool Tipi NG 32 (bar) (lt/dak.)
DSO10-TA/20NII TB GÖVDE NG32 350 1100
DSO10-S1/20NII KM GÖVDE NG32 350 1100
DSO10-S2/20NZI HM ÇEKLİ GÖVDE NG32 350 1100
DSO10-S3/20NII ABT GÖVDE NG32 350 1100
DSO10-S4/20NZI AM ÇEKLİ GÖVDE NG32 350 1100

Pilot valf fiyatlara dahil değildir.
